Mastering Rubber Bushing Removal: Your Complete Guide To Precision And Performance

Views: 0     Author: Site Editor     Publish Time: 2024-06-25      Origin: Site

How to Remove Rubber Bushings

Rubber bushings play a critical role in the suspension system of vehicles, serving as a cushion between the parts and reducing vibrations, noise, and harshness. Over time, these bushings can wear out and need replacement. Whether you're dealing with lower control arm rubber bushings or sway bar rubber bushings, the removal process is quite similar. Article provides a comprehensive guide on how to remove rubber bushings effectively.

Tools and Materials Needed

Before starting, gather the necessary tools and materials:

● Jack and jack stands

● Wrenches and sockets

● Screwdrivers

● Rubber mallet

● Press or bushing removal tool

● Penetrating oil

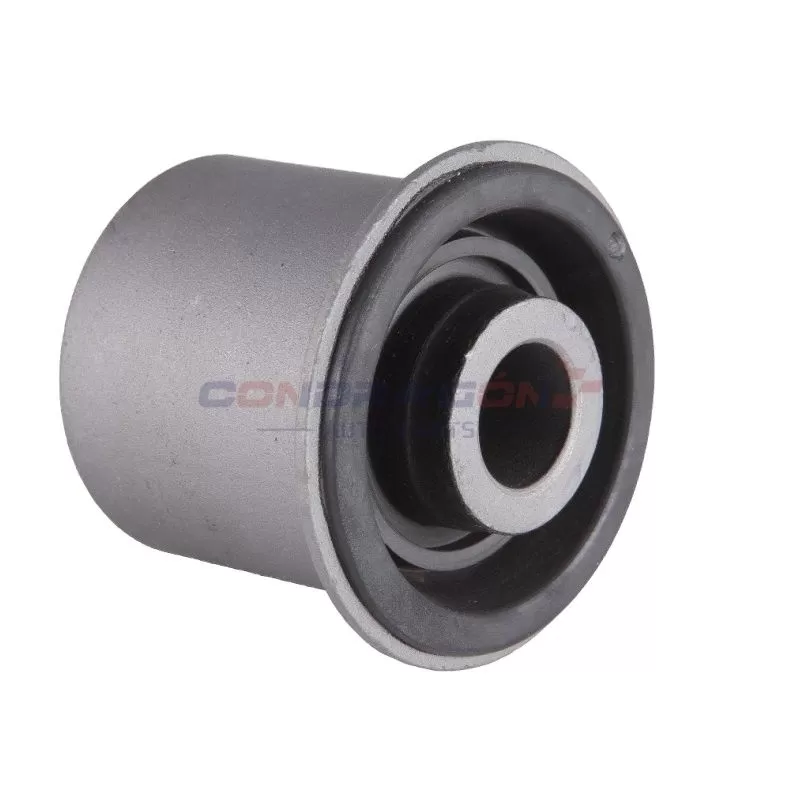

rubber bushing

Safety glasses and gloves

Step-by-Step Guide to Removing Rubber Bushings

Safety First

Ensure your vehicle is parked on a flat surface. Engage the parking brake and use wheel chocks to prevent the car from moving. Always wear safety glasses and gloves to protect yourself from debris and chemicals.

Lift the Vehicle

Use a jack to lift the vehicle and securely place it on jack stands. Make sure the car is stable before you start working underneath it.

Locate the Bushings

Identify the rubber bushings that need to be removed. For lower control arm rubber bushings, you'll find them at the point where the control arm connects to the frame and the wheel hub. Sway bar rubber bushings are located at the points where the sway bar connects to the chassis or control arms.

Remove the Component

If necessary, remove the component containing the bushings. For lower control arm bushings, you may need to detach the control arm from the vehicle. This often involves removing bolts and other fasteners. For sway bar bushings, you might need to disconnect the sway bar links and the sway bar itself.

Apply Penetrating Oil

Spray penetrating oil on the bolts and fasteners holding the bushing in place. Allow the oil to soak in for a few minutes to loosen any rust or debris, making it easier to remove the bolts.

Remove the Old Bushing

Using a press or a bushing removal tool, push the old bushing out of its housing. If you don’t have a press, you can use a combination of a vise and a socket to press out the bushing. Place the socket over the bushing and tighten the vise to press the bushing out. Alternatively, use a rubber mallet to tap out the bushing if it’s not too stubborn.

Clean the Housing

Once the old bushing is removed, clean the housing thoroughly. Remove any rust, debris, or old rubber residue using a wire brush or sandpaper. A clean housing ensures a better fit for the new bushing.

Tips for Successful Bushing Removal

Patience: Removing bushings can be a time-consuming task. Take your time and avoid rushing to prevent damaging the components.

Proper Tools: Using the correct tools can make the job significantly easier. A bushing removal tool or press is highly recommended for this task.

Heat Application: In some cases, applying heat to the metal surrounding the bushing can help loosen it. Use a heat gun or torch carefully, ensuring not to damage nearby components.

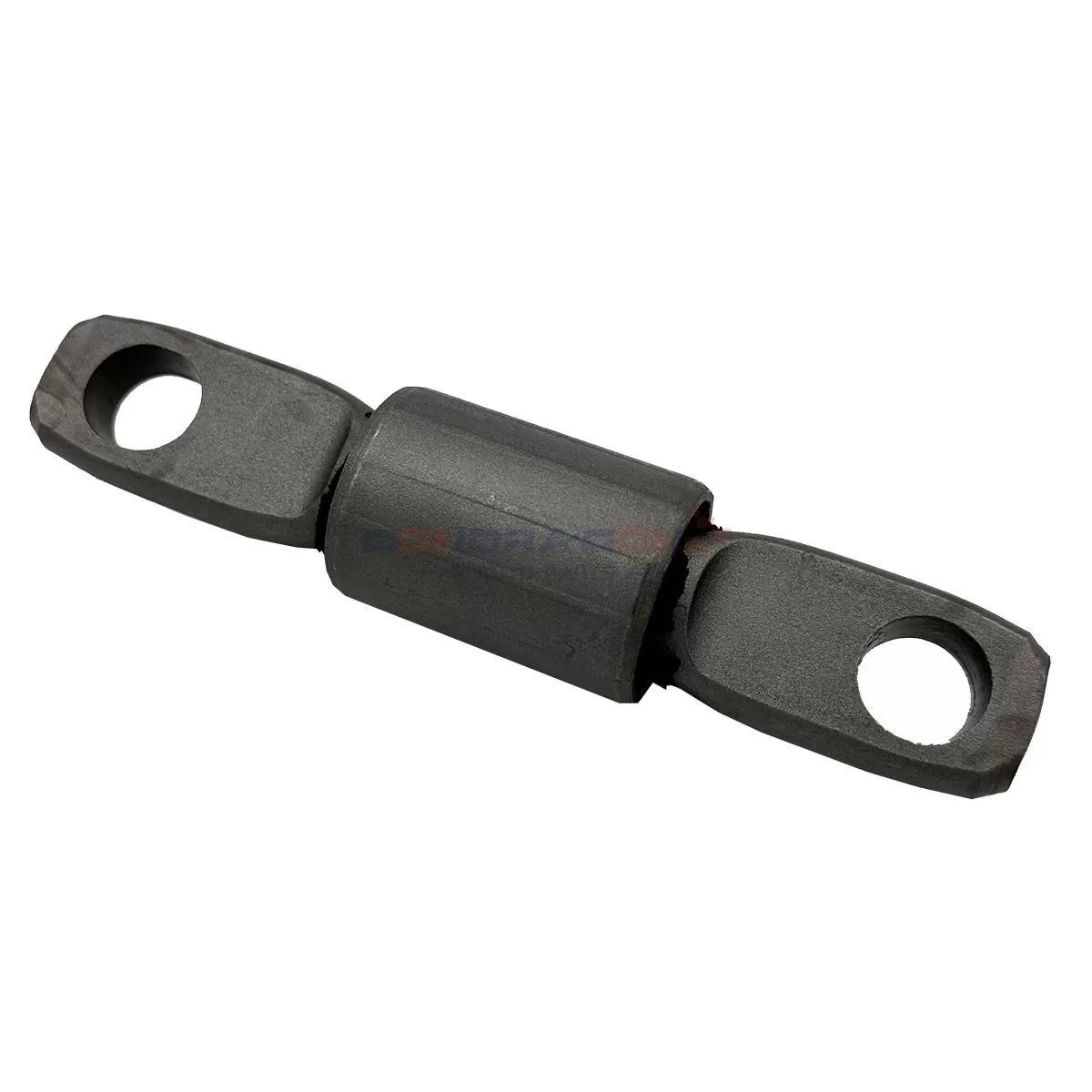

lower control arm rubber bushing

Installing New Bushings

After removing the old bushings, installation of the new ones follows a similar process but in reverse. Ensure the new bushings are the correct size and type for your vehicle. Press the new bushing into the housing using a press or a vise. Reassemble the component and secure all bolts and fasteners. Double-check everything to ensure it’s tight and properly aligned.

Recommended Products

When it comes to high-quality bushings, Condragon Parts offers a range of reliable products. Their bushings are designed to meet OEM standards, ensuring durability and optimal performance. Whether you need lower control arm rubber bushings or sway bar rubber bushings, Condragon Parts has got you covered.

Contact Condragon Parts:

For more information on Condragon Parts products, feel free to reach out to them at manager@condragonparts.com


Removing rubber bushings can be a challenging task, but with the right tools and a bit of patience, it is entirely doable. Whether you are working on lower control arm bushings or sway bar bushings, following the steps outlined above will help you complete the job efficiently. Don't forget to consider Condragon Parts for your bushing replacement needs to ensure quality and longevity in your vehicle's performance.
