Views: 0 Author: Site Editor Publish Time: 2025-03-31 Origin: Site
Vehicle suspension systems are crucial components of your car, designed for safety, comfort, and control. Among the many suspension parts, two critical elements that often confuse vehicle owners are torque rods and lower control arms. These parts play distinct roles but are equally important for your vehicle's performance and safety. This guide will cover what lower control arms are, their purpose, and how to replace them. We'll also discuss torque rods and why you need to monitor their condition in tandem with the suspension system. By the end, you'll better understand these components and where to source reliable, high-quality replacements.
Lower control arms are crucial parts of a vehicle's suspension system, serving as a connecting link between the chassis and the wheel assembly. They manage the up-and-down motion of the wheels while keeping them aligned with the car's frame. Here's a breakdown of its role:
Lower control arms connect the suspension and wheel assembly to the car's frame. This direct link keeps the vehicle stable, particularly during turns or when navigating uneven roads. Without sturdy lower control arms, your car's frame and wheels would be out of sync, making the ride unstable.
Lower control arms help maintain proper wheel alignment, which directly affects tire wear and vehicle handling. With misaligned wheels, you'll notice uneven tire deterioration and reduced responsiveness when steering.
Along with shocks and struts, lower control arms dampen the effects of bumps and potholes. They ensure that vibrations do not significantly affect your steering and driving comfort. To summarize, lower control arms play a double role of supporting the car's weight and enabling smooth, controlled motion of the wheels. Without them, driving would feel unstable and potentially unsafe.

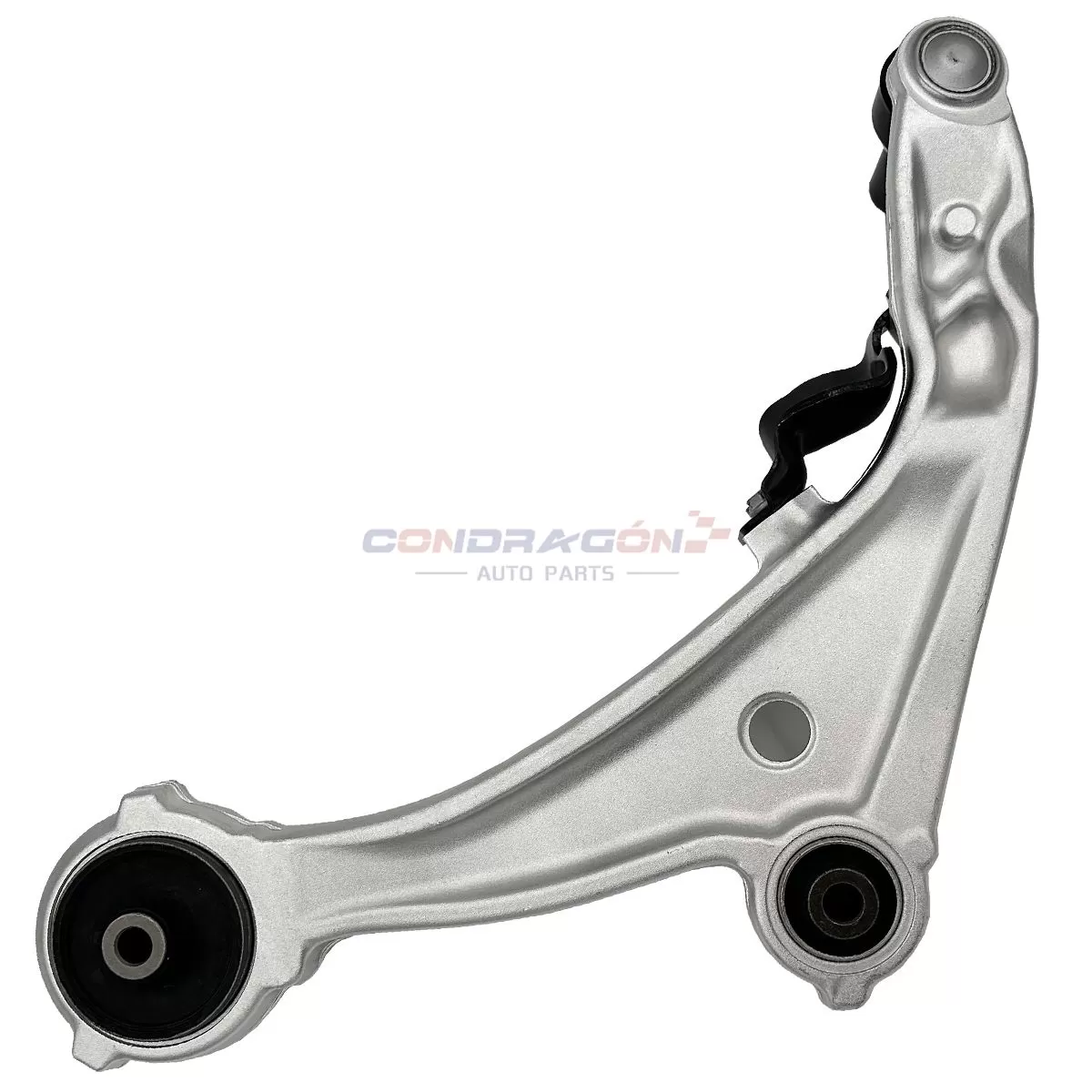

Lower control arms are metal components shaped like an "A" or wishbone, often constructed from steel or aluminum. They are installed on the lower part of your vehicle's suspension system. Here’s a closer look at their structure and components:
| Component | Function |
|---|---|
| Control Arm Frame | Provides structural integrity and connects to the vehicle chassis |
| Bushings | Reduce friction and absorb vibration during suspension motion |
| Ball Joint | Acts as a pivot to allow the wheel assembly to move in coordination with the suspension |
Lower control arms come in different designs, depending on the vehicle's suspension system:
Non-Adjustable Control Arms - Standard factory-installed arms with fixed specifications. Adjustable Control Arms - Allow adjustments for wheel alignment themselves. Stamped Steel Arms - Economical and lightweight, often found in budget vehicles. Forged Aluminum Arms - Durable and less prone to rust, suited for high-end cars or harsh environments. Whether your vehicle comes with stamped steel arms or forged aluminum, inspecting the lower control arm for wear and tear ensures your car continues to perform effectively.
If you’ve noticed uneven tire wear, poor alignment, or unstable handling, it may be time to replace the lower control arms. Here’s a step-by-step guide for replacing lower control arms:
You'll need the following tools and equipment to get started: Jack and jack stands Pry bar Torque wrench Ratchets and sockets New lower control arm with matching specs Penetrating oil (to loosen rusty parts)
Park the car on level ground and apply the parking brake. Loosen the lug nuts on the wheel whose lower control arm needs replacement. Jack up the vehicle and secure it on jack stands for safety. Remove the loosened lug nuts completely and take off the wheel.
Find the lower control arm near the suspension system. It’s secured by bolts to the frame and the ball joint.
Spray some penetrating oil on the bolts to make removal easier. Use the ratchets and sockets to loosen and remove the bolts connecting the control arm to the chassis. Detach the ball joint by removing the cotter pin and bolt. A pry bar can help with stubborn connections.
Align the new control arm in the same position as the old one. Secure the new arm first to the chassis, then to the ball joint. Tighten all bolts using the torque wrench to ensure they meet recommended torque specifications found in your vehicle manual.
Reattach the wheel and lug nuts. Lower the vehicle from the jack stands. Test drive the vehicle to check for improved handling and alignment. Replacing the lower control arm might seem daunting, but with the right tools and instructions, it can be a manageable DIY project for intermediate-level mechanics. That being said, if you're not confident, consult a professional technician.
Torque rods are components of your vehicle’s suspension system that serve to manage twisting or "torque" forces acting on the drivetrain and suspension. They are primarily used in heavy vehicles and trucks but can also be found in some cars. Here’s what torque rods do:
Torque rods stabilize the axle, preventing it from twisting under motor torque or wheel force. This is particularly essential for maintaining drivetrain alignment.
By anchoring the axle to the chassis, torque rods reduce side-to-side motion, offering a smoother ride and improved control over turns and slopes.
Properly functioning torque rods reduce strain on other suspension elements, extending the lifespan of bushings, axles, and ball joints. Torque rods play a vital role in tandem with lower control arms. Together, these components maintain stability and performance, giving you both a comfortable and safe ride.
How do you tell when your lower control arms or torque rods are wearing out? Here are some common signs to watch for:
Unusual Noises : Clunking or knocking sounds during turns or over bumps indicate worn-out bushings or loose joints.
Poor Steering Responsiveness : A loose or highly sensitive steering wheel points to worn ball joints.
Uneven Tire Wear : Improper wheel alignment leads to uneven tire degradation.
Instability : Difficulty maintaining control, especially at high speeds.
Vibrations : Excessive vibrations in the vehicle can indicate faulty torque rods unable to control twisting forces.
Axle Misalignment : A shifted axle can result from torque rod failure.
Lateral Movement : The vehicle may sway excessively when taking a turn due to reduced axle stability. If you notice any of these signs, it’s crucial to inspect the respective parts and replace them if necessary.
A lower control arm connects the vehicle's frame to the wheel assembly, providing support, stability, and enabling proper wheel alignment.
Lower control arms are part of a car's suspension system, typically shaped like a wishbone, and include bushings and ball joints for reduced friction and efficient motion.
To replace a lower control arm, you need to: Jack up the car and remove the wheel. Detach the old arm by unbolting it from the chassis and ball joint. Install the new arm, followed by the wheel, and tighten bolts to the vehicle manufacturer’s specifications.
When it comes to replacing critical suspension components like torque rods and lower control arms, quality and reliability are non-negotiable. Choosing subpar components can compromise the safety and performance of your vehicle. Condragon Parts offers a wide selection of durable, high-performance suspension parts explicitly designed to meet various vehicle specifications. Whether you’re a DIY enthusiast or a professional mechanic, you can count on Condragon Parts for premium replacement parts that ensure a longer lifespan and improved performance. Contact Condragon Parts at the details below for more information or to place an order:
